产品型号
产品参数

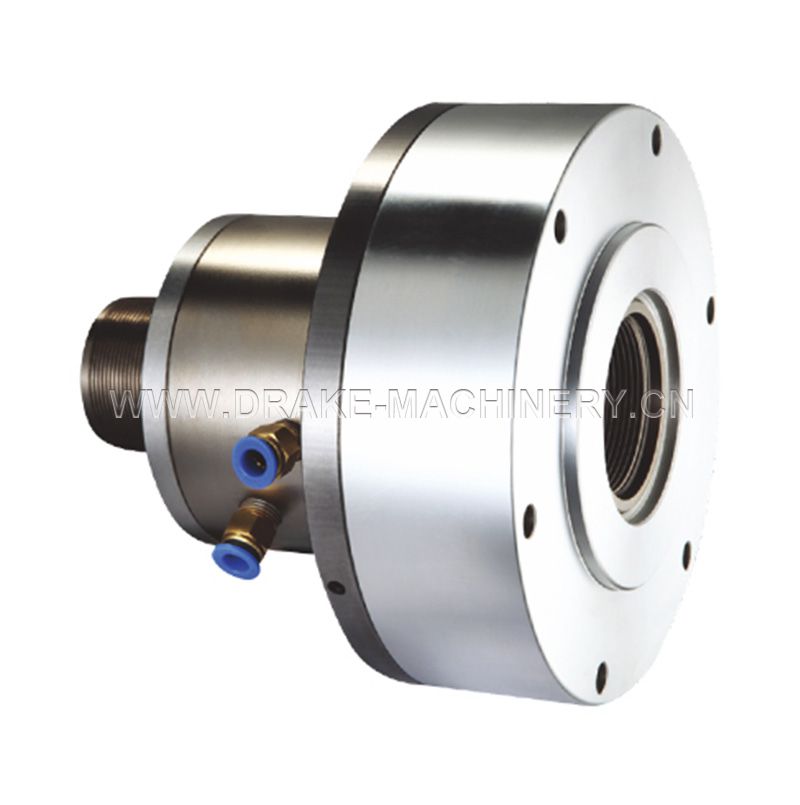

The cylinder body is made of high quality aluminum alloy, lightweight, small and durable. the hollow structure is suitable for the machining of long working parts Ideal clamping actuator.

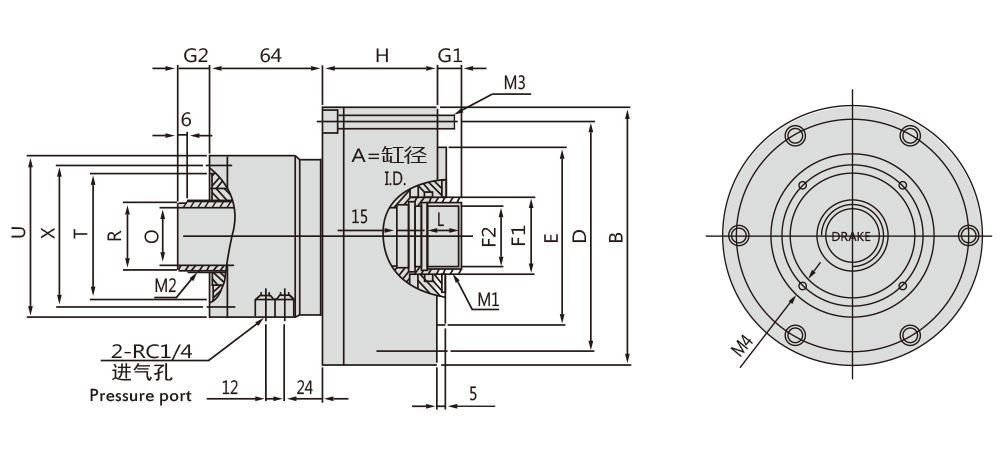

| Dimensions(mm) | ||||||||||||
| Spec | A | B | D | E(H7) | F1 | F2(H8) | G1 | G2 | H | L | ||
| Model | max | min | max | min | ||||||||
| RQ-130 | 130 | 160 | 143 | 110 | 45 | 36 | 4 | 0 | 30 | 26 | 47 | 25 |
| RQ-150 | 150 | 180 | 163 | 65 | 50 | 15 | 40 | 25 | 64 | 30 | ||
| RQ-170 | 170 | 200 | 182 | 70 | 55 | 15 | 35 | 20 | 63 | 25 | ||
| Dimensions(mm) | |||||||||
| Spec | M1 | M2 | M3 | M4 | O | R | T | U | X |
| Model | |||||||||
| RQ-130 | M38x1.5 | M44x1.5 | 6-M8x60 | 4-M5x8 | 34 | 42 | 70 | 92 | 85 |
| RQ-150 | M55x2 | M52x1.5 | 6-M8x75 | 46 | 50 | 82 | 104 | 97 | |
| RQ-170 | M60X2 | M58X1.5 | 6-M8X70 | 4-M6X10 | 52 | 56 | 86 | 130 | 110 |
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke (mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | |||||
| RQ-130 | 114.9 | 114.6 | 4 | 5000 | 8(0.8) | 827(8.1) | 824(8) | 0.04 | 8.2 |
| RQ-150 | 154.65 | 143.53 | 15 | 4500 | 1114(10.9) | 1033(10.1) | 0.06 | 9.5 | |
| RQ-170 | 198.7 | 188.5 | 15 | 4500 | 1589.6(15.58) | 1508(14.78) | 0.09 | 11.6 | |
