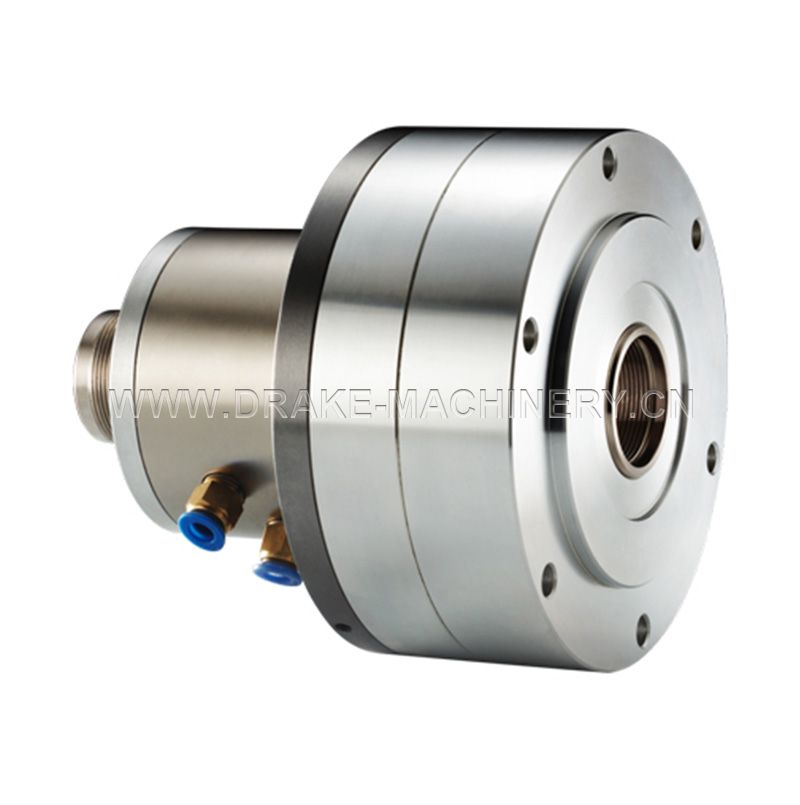

The cylinder body is made of high quality aluminum alloy, lightweight, small and durable. the hollow structure is suitable for the machining of long working parts Ideal clamping actuator.

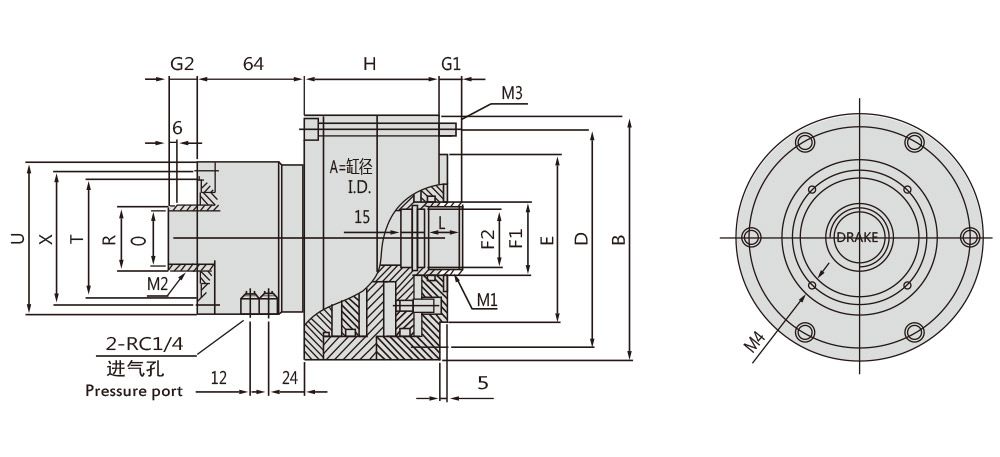

| Dimensions(mm) | ||||||||||||
| Spec | A | B | D | E(H7) | F1 | F2(H8) | G1 | G2 | H | L | ||
| Model | max | min | max | min | ||||||||
| RQ-130B | 130 | 160 | 143 | 110 | 45 | 36 | 4 | 0 | 30 | 26 | 47 | 25 |
| RQ-150B | 150 | 180 | 163 | 65 | 50 | 15 | 40 | 25 | 64 | 30 | ||
| Dimensions(mm) | |||||||||
| Spec | M1 | M2 | M3 | M4 | O | R | T | U | X |
| Model | |||||||||
| RQ-130B | M38x1.5 | M44x1.5 | 6-M8x60 | 4-M5x8 | 34 | 42 | 70 | 92 | 85 |
| RQ-150B | M55x2 | M52x1.5 | 6-M8x75 | 46 | 50 | 82 | 104 | 97 | |
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | |||||
| RQ-130B | 223.8 | 223.5 | 12 | 5000 | 8(0.8) | 1611(15.8) | 1609(15.7) | 0.08 | 9 |
| RQ-150B | 300.19 | 289 | 15 | 4500 | 2161(21.18) | 2080(20.39) | 0.18 | 12.5 | |
