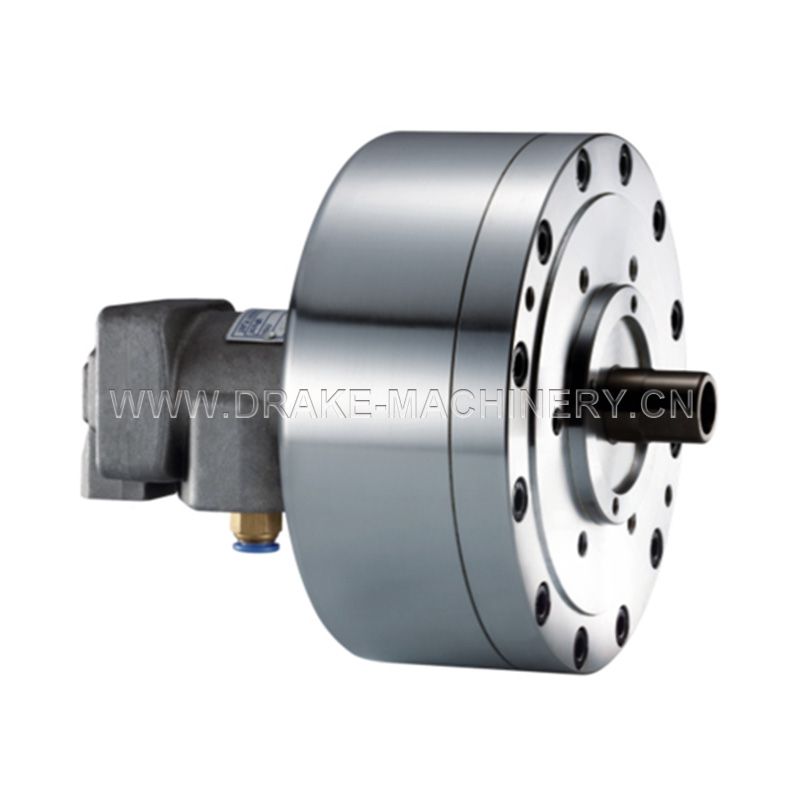

The cylinder body is made of high quality aluminum alloy, lightweight, small and durable, Ideal clamping actuator.

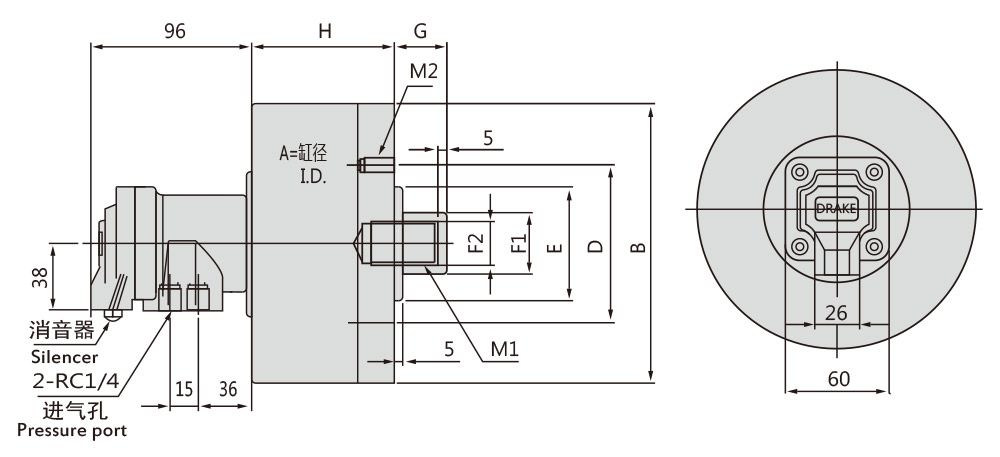

| Dimensions(mm) | |||||||||||
| Spec | A | B | D | E(H7) | F1 | F2(H8) | G1 | H | M1 | M2 | |
| Model | max | min | |||||||||
| RA-100 | 100 | 130 | 80 | 60 | 22 | 13 | 50 | 35 | 65 | M12X1.75 | 6-M8X16 |
| RA-130 | 130 | 160 | 90 | 65 | 25 | 17 | 45 | 30 | 70 | M16x25 | 6-M8x18 |
| RA-150 | 150 | 180 | 100 | 80 | M16x30 | 6-M10x18 | |||||
| RA-170 | 170 | 200 | 40 | 20 | 77 | ||||||
| RA-200 | 220 | 255 | 170 | 110 | 30 | 21 | 50 | 25 | 91 | M20x2.5 | 6-M12X20 |
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | (P 6kgf/cm2) Air Leakage (ml/sec) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | |||||||
| RA-100 | 77 | 74.4 | 15 | 6000 | 8(0.8) | 400 | 0.03 | 4.5 | |
| RA-130 | 131.12 | 127.76 | 15 | 5000 | 400 | 0.05 | 5.3 | ||
| RA-150 | 174 | 170.7 | 400 | 0.09 | 6.6 | ||||
| RA-170 | 225.3 | 219.8 | 20 | 400 | 0.13 | 8.5 | |||
| RA-200 | 378.6 | 369.3 | 25 | 4000 | 400 | 0.36 | 14.5 | ||
