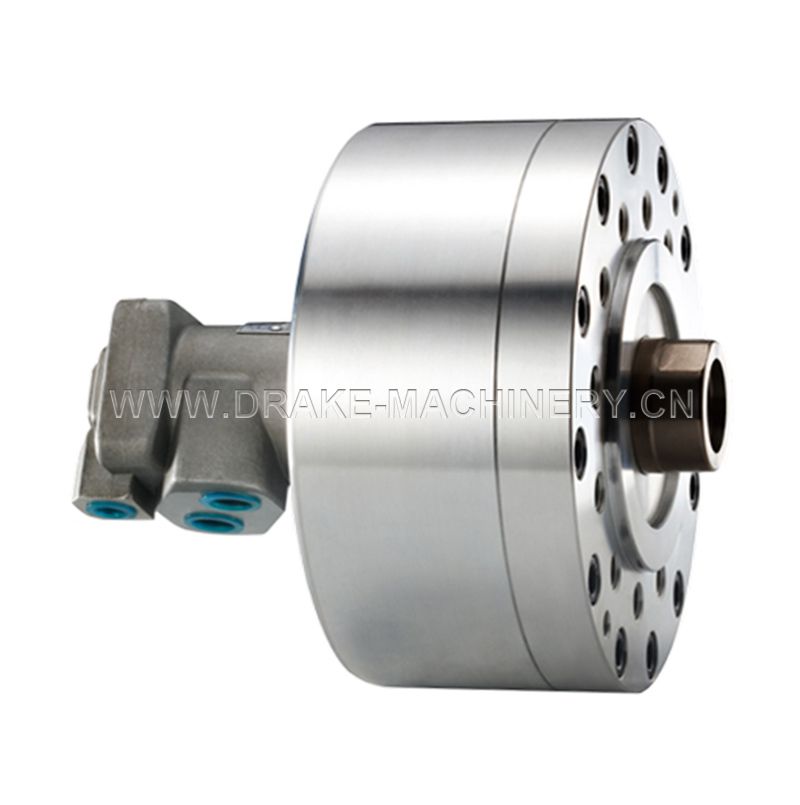

● The cylinder body is made of high quality aluminum alloy, lightweight,small and durable.
● High speed performance stabiling.

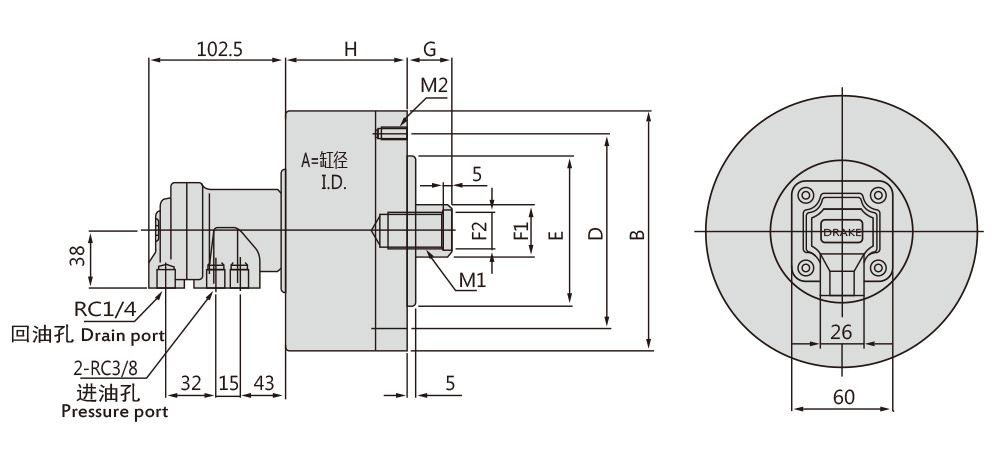

| Dimensions(mm) | |||||||||||
| Spec | A | B | D | E(H7) | F1 | F2(H8) | G | H | M1 | M2 | |
| Model | max | min | |||||||||
| RH-65 | 65 | 98 | 80 | 60 | 22 | 13 | 45 | 30 | 71 | M12x25 | 6-M8x16 |
| RH-80 | 80 | 112 | 90 | 65 | 25 | 17 | 73 | M16x30 | |||
| RH-100 | 100 | 135 | 100 | 80 | 28 | 25 | 82 | 6-M10x16 | |||
| RH-100K | 21 | M20x35 | |||||||||
| RH-125 | 125 | 160 | 130 | 110 | 35 | 50 | 91 | 6-M12x18 | |||
| RH-125K | 25 | M24x40 | |||||||||
| RH-150 | 150 | 190 | 45 | 31 | 55 | 101 | M30x45 | 12-M12x20 | |||
| RH-200 | 200 | 245 | 145 | 120 | 55 | 37 | 57 | 22 | 126 | M36x55 | 12-M16x28 |
| RH-250 | 250 | 296 | 200 / 275 | 160 | 60 | 100 | 40 | 156 | 6-M20x30 / 6-M12 | ||
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | |||||
| RH-65 | 31.64 | 29.38 | 15 | 6000 | 35(3.5) | 997(9.8) | 925(9.1) | 0.01 | 2.65 |
| RH-80 | 48.67 | 45.33 | 40(4.0) | 1530(15) | 1428(14) | 3.6 | |||
| RH-100 | 76.93 | 73.6 | 20 | 5500 | 2770(27.1) | 2650(25.9) | 0.04 | 4.8 | |
| RH-100K | 71.4 | 2570(25.2) | |||||||
| RH-125 | 120.9 | 115.55 | 25 | 5000 | 4360(42.7) | 4160(40.7) | 0.08 | 6.5 | |
| RH-125K | 113 | 4060(40.7) | |||||||
| RH-150 | 176.7 | 160.7 | 30 | 6300(61.7) | 5730(56.2) | 0.18 | 10.5 | ||
| RH-200 | 314.1 | 290.4 | 35 | 4000 | 11300(110.8) | 10454(102.4) | 0.38 | 18.7 | |
| RH-250 | 485.7 | 462.3 | 60 | 2000 | 35(3.5) | 15300(150) | 14560(142.7) | 0.96 | 35 |
| The drain port should be independently connected to oil tank to avoid back pressure. | |||||||||
