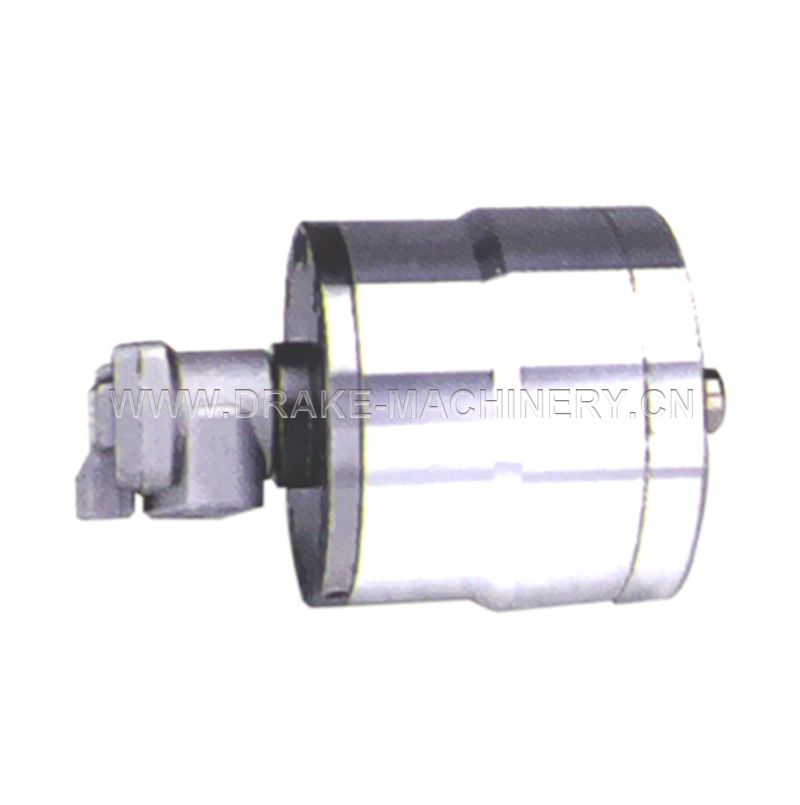

● The cylinder body is made of high quality aluminum alloy, lightweight, small, double rod rotary cylinder.
● With built-in"check valve", work pieces can be effectively prevented from flying out during abrupt failure of pressure.

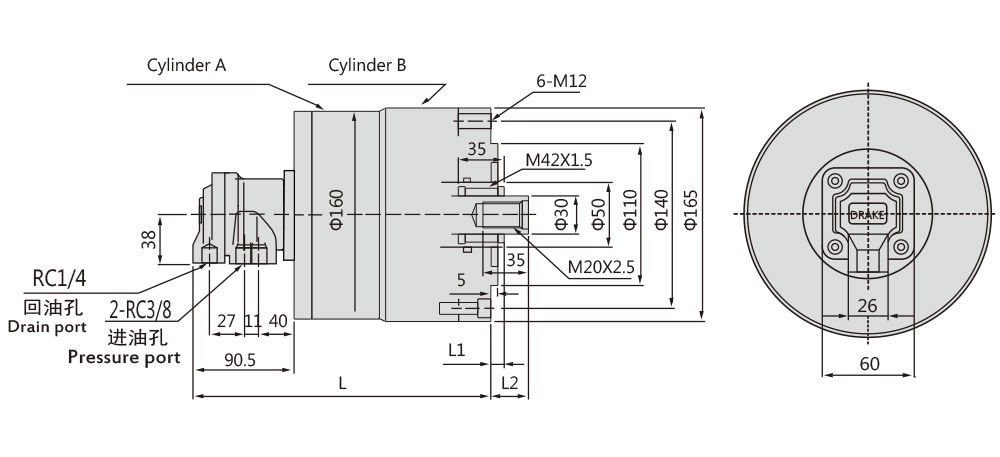

Dimensions(mm) | |||||||
Spec | A | B | L | L1 max. | L1 min | L2 max. | L2 min |
Model | |||||||
RD-120ZN | 125 | 130 | 228 | 35 | 15 | 60 | 40 |
RD-125ZN | 238 | 10 | 55 | 30 |
Specifications | |||||||||
Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Moment of inertial (kg.m²) | Weight(kg) | |||
Model | Extend | Retract | |||||||
A | B | A | B | ||||||
RD-120ZN | 122.7 | 126 | 116 | 113 | 20 | 5000 | 30(3.0) | 0.14 | 11.2 |
RD-125ZN | 25 | 0.15 | 11.4 | ||||||
The drain port should be independently connected to oil tank to avoid back pressure. | |||||||||
