产品型号
产品参数

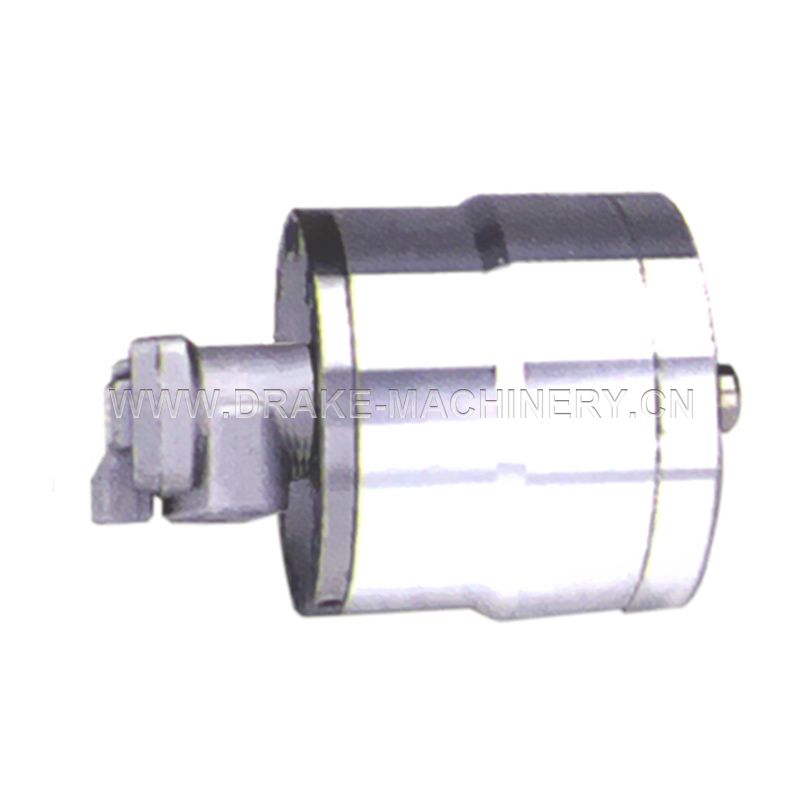

The cylinder body is made of high quality aluminum alloy, lightweight, small, double rod rotary cylinder.

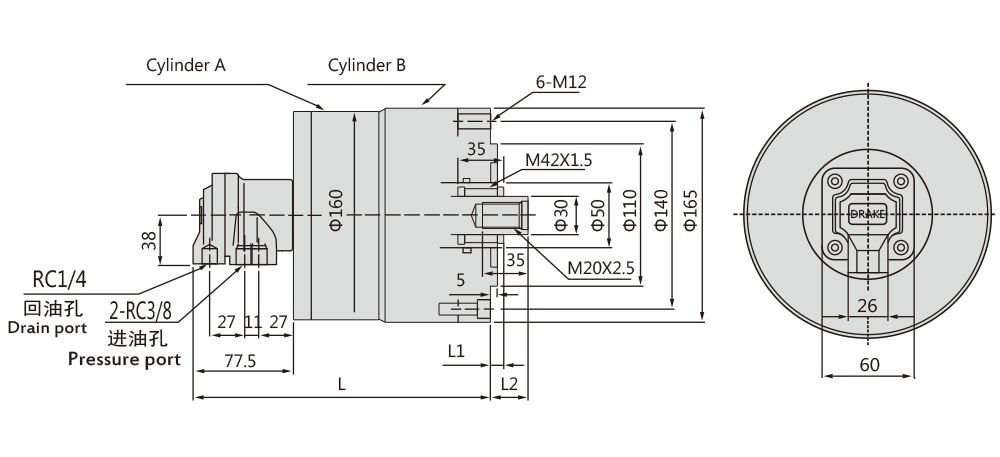

| Dimensions(mm) | |||||||
| Spec | A | B | L | L1 max. | L1 min | L2 max. | L2 min |
| Model | |||||||
| RD-120N | 125 | 130 | 215 | 35 | 15 | 60 | 40 |
| RD-125N | 225 | 10 | 55 | 30 | |||
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Moment of inertial (kg.m²) | Weight(kg) | |||
| Model | Extend | Retract | |||||||
| A | B | A | B | ||||||
| RD-120N | 122.7 | 126 | 116 | 113 | 20 | 5000 | 30(3.0) | 0.14 | 11.2 |
| RD-125N | 25 | 0.15 | 11.4 | ||||||
