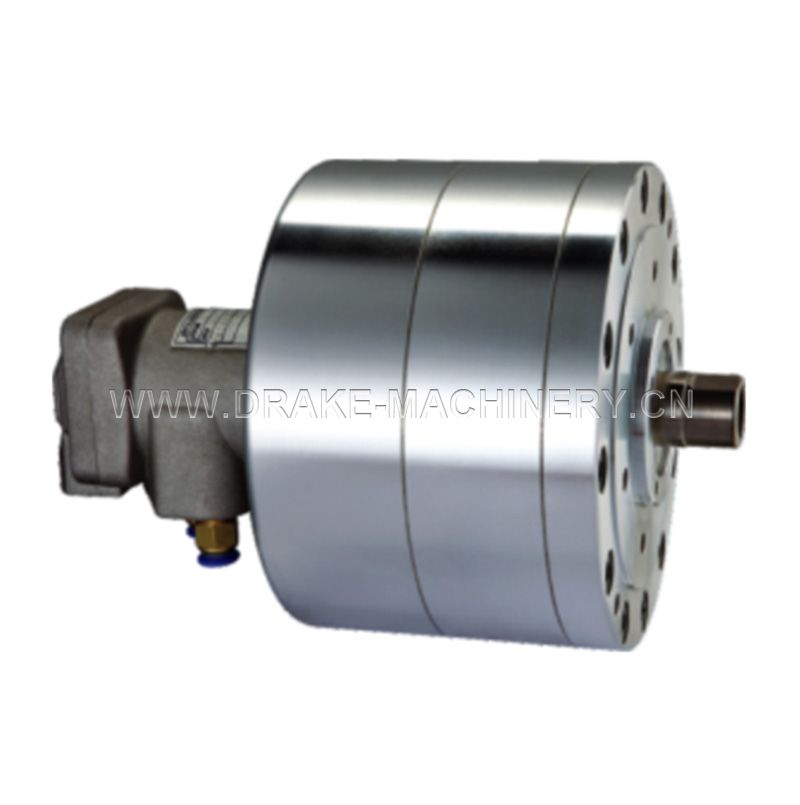

The cylinder body is made of high quality aluminum alloy, lightweight, small and durable, Ideal clamping actuator.

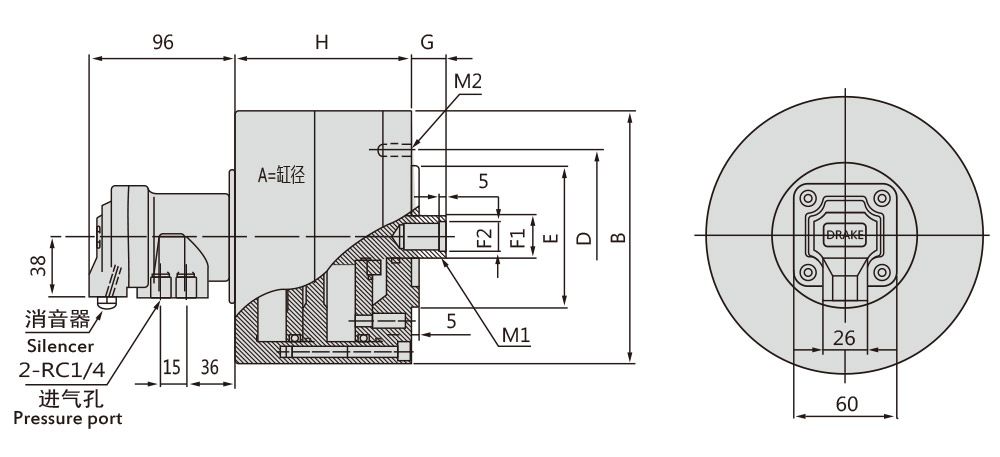

| Dimensions(mm) | |||||||||||
| Spec | A | B | D | E(H7) | F1 | F2(H8) | G1 | H | M1 | M2 | |
| Model | max | min | |||||||||
| RA-130B | 130 | 160 | 90 | 65 | 25 | 17 | 45 | 30 | 113 | M16x25 | 6-M8x18 |
| RA-150B | 150 | 180 | 100 | 100 | 30 | 21 | 31 | 11 | 126 | M20x30 | 6-M10x18 |
| RA-170B | 170 | 200 | 100 | 80 | 40 | 20 | 126 | ||||
| RA-200B | 200 | 236 | 160 | 125 | 44 | 23 | 35 | 5 | 162 | M22x30 | 8-M12x20 |
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke (mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | |||||
| RA-130B | 254.23 | 250.87 | 15 | 4000 | 8(0.8) | 1830(17.9) | 1806(17.7) | 0.11 | 8 |
| RA-150B | 339 | 332 | 20 | 2440(23.9) | 2390(23.4) | 0.19 | 9.3 | ||
| RA-170B | 442 | 436.4 | 3182(31.1) | 3142(30.8) | 0.27 | 10.5 | |||
| RA-200B | 603.5 | 590 | 30 | 4345(42.58) | 4248(41.63) | 0.45 | 13 | ||
