产品型号
产品参数

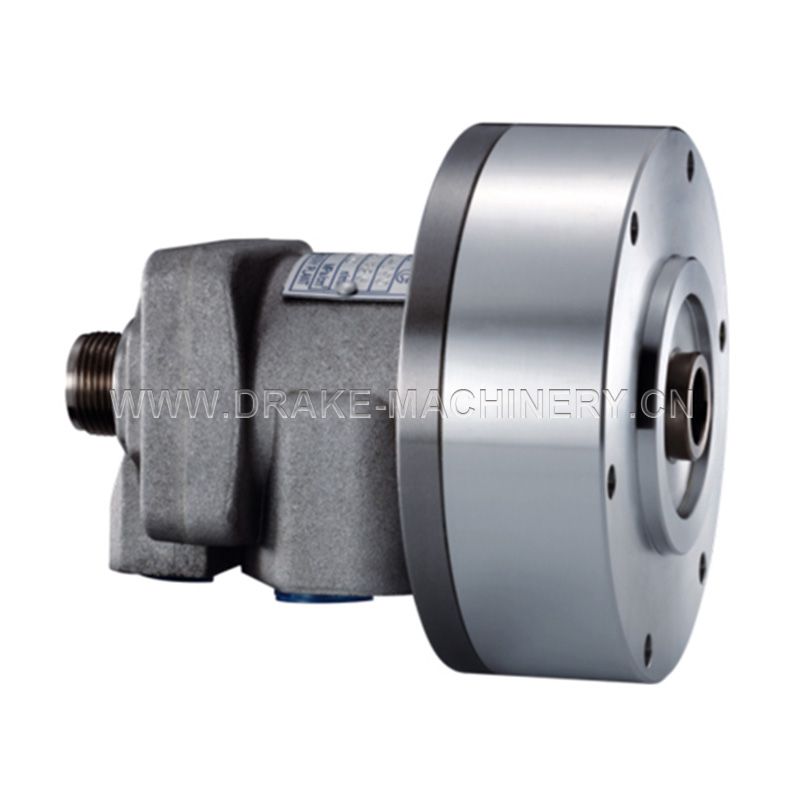

The cylinder body is made of high quality aluminum alloy, small through-hole, lightweight, small and durable.

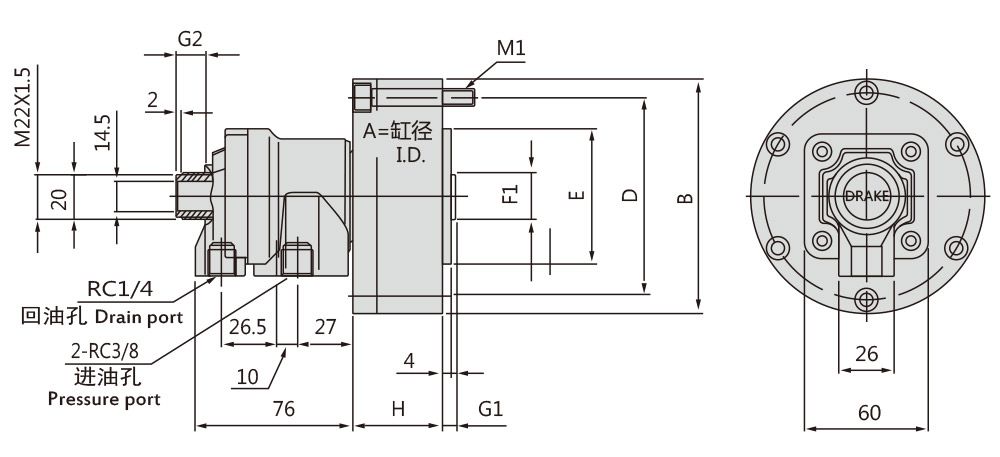

| Dimensions(mm) | |||||||||||
| Spec | A | B | D | E(H7) | F1 | G1 | G2 | H | M1 | ||
| Model | max | min | max | min | |||||||
| KH-90 | 90 | 112 | 100 | 60 | 22 | 6 | 0 | 24 | 18 | 42 | 6-M6x50 |
| Specifications | |||||||||
| Spec | Eff piston area(cm²) | Piston stroke(mm) | Max. Speed (r/min) | Max. pressure MPa(kgf/cm²) | Max.pull force kgf(KN) | Moment of inertial (kg.m²) | Weight(kg) | ||
| Model | Extend | Retract | Extend | Retract | |||||
| KH-90 | 59.8 | 59.8 | 6 | 3000 | 25(2.5) | 1315(13.42) | 1315(13.42) | 0.01 | 2.3 |
| The drain port should be independently connected to oil tank to avoid back pressure. | |||||||||
