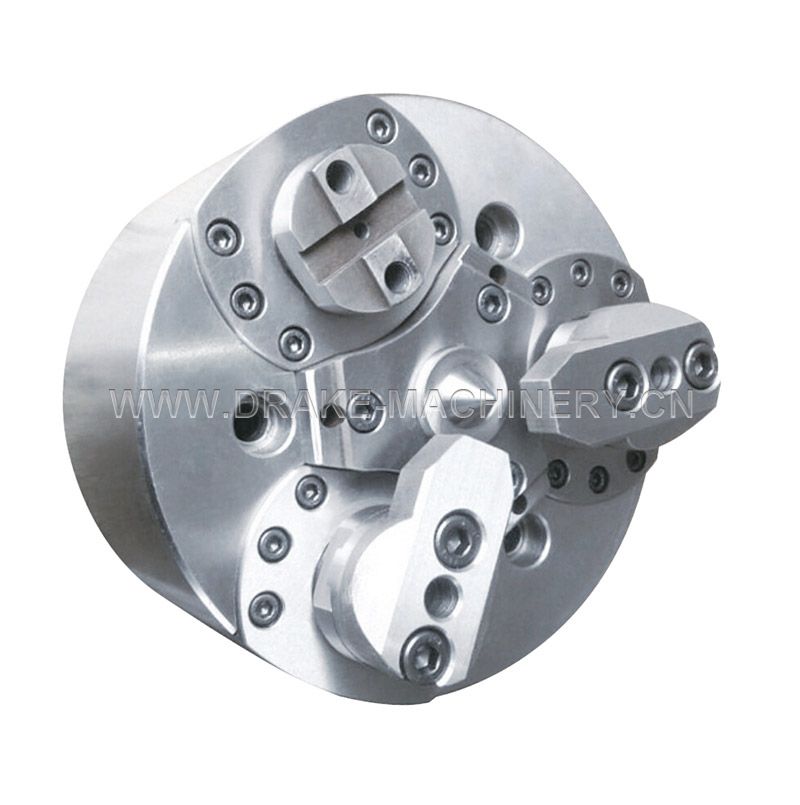

Technical features:
Back pull action (ensure axial length).
Key slot type basic claw (powerful and steady).
Compensation clamp (the clamping jaw is with multi-directional swing function).
Centrifugal force compensation (overcome high-speed rotation).
Applications:
Used for tow top ways for machining axis parts.
Clamping is convenient, replying on orientation of center hole for rapid clamping.
The workpiece can be aligned by reference diameter of fixed top, and clamping jaw only provides driving torque and pulls back to a fixed reference point.
产品型号
产品参数
| Performance parameters | ||||||||
| MODEL/SPEC. | Angular travel of clamping jaw U(deg) | Radial travel of clamping jaw-height h(mm) | Back pull travel V(mm) | Axial travel of piston (mm) | Compensation amount(diameter) height h(mm) | Max. clamp force (kN) | Maximum speed (r.p.m) | Eeight (kg) |
| YF3-06'' | 5° | 5 | 0.1(0.5) | 16 | ±1 | 40 | 4500 | 15.8 |
| YF3-08'' | 5° | 5 | 0.1(0.5) | 16 | ±1.5 | 60 | 4000 | 26 |
| YF3-10'' | 4° | 7 | 0.1(0.5) | 18 | ±2 | 95 | 3500 | 39.5 |
| YF3-12'' | 4° | 7 | 0.1(0.5) | 18 | ±2.5 | 98 | 2800 | 68 |

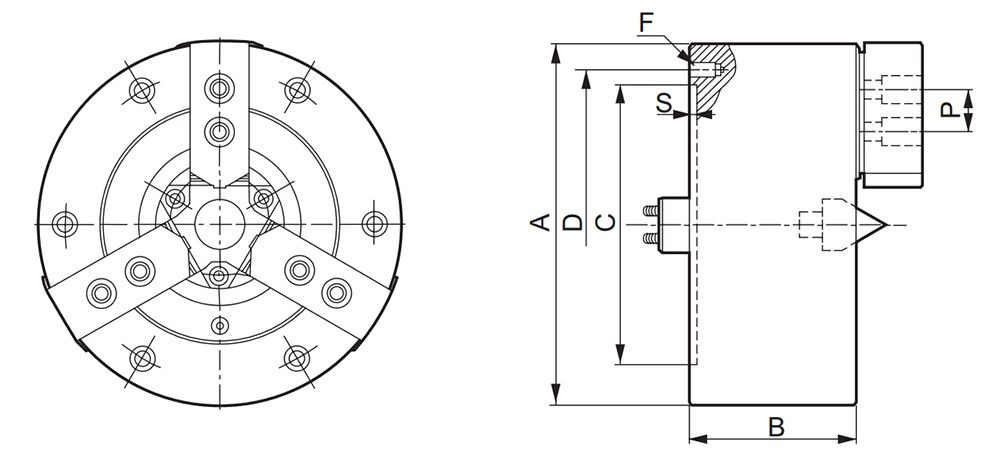

| Size parameter | |||||||||||||
| MODEL/SPEC. | A | Bf | Ba | C | E | F | W | Hf | Yf | h reference height | f | V | Ha |
| YF3-06'' | 175 | 140 | 82.563 | 104.8 | 38 | M28*105 | 25 | 85 | 5 | 50 | 27 | 0.1(0.5) | 102 |
| YF3-08'' | 212 | 170 | 106.375 | 133.4 | 38 | M32*1.5 | 25 | 105 | 5 | 55 | 33 | 0.1(0.5) | 105 |
| YF3-10'' | 250 | 220 | 139.719 | 171.4 | 48 | M38*1.5 | 25 | 108 | 5 | 70 | 33 | 0.1(0.5) | 110 |
| YF3-12'' | 315 | 220 | 139.719 | 171.4 | 48 | M38*1.5 | 25 | 108 | 5 | 70 | 33 | 0.1(0.5) | 115 |
