产品详情

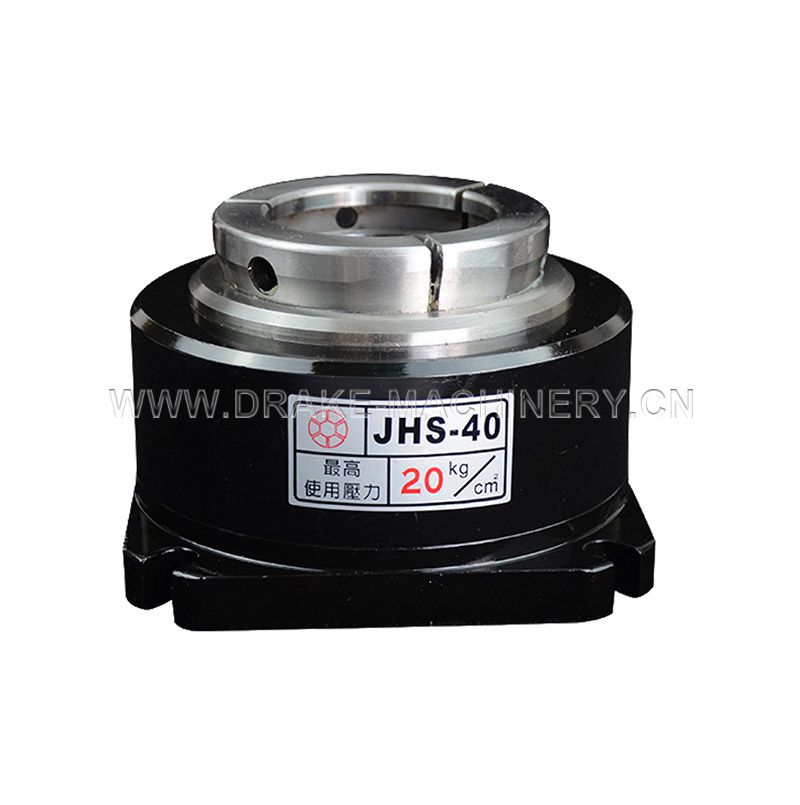

Product Features:

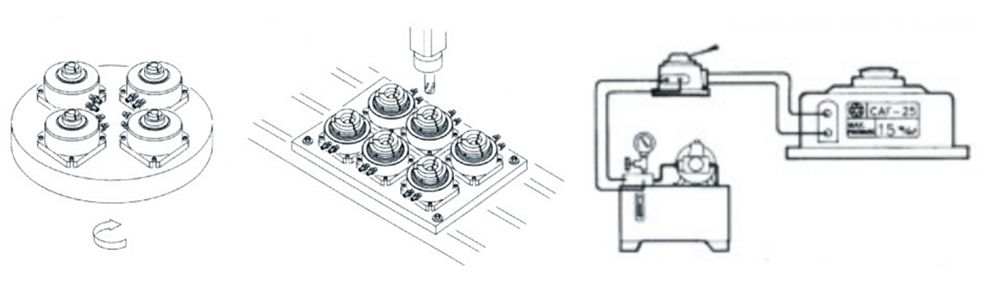

Suitable for drilling machines, tapping machines, iron beds, central processing machines, disc multi-station processing machines.
It is more convenient to use the interchangeable auxiliary claws and save the cost of the collet caused by product changes.
产品型号
产品参数
| Performance Parameters | |||||||
| Model/Spec. | Power source | Working pressure (kg/cm²) | Max.chuck diameter （mm） | Through-hole aperture (mm) | Clamping torque (N.m) | Matching jaw | Net weight (kg) |
| JHS-40" | Oil pressure | 20 | ∮50 | ∮38 | 35 | C-40 | 8.5 |
| JHS-70" | Oil pressure | 20 | ∮90 | ∮68 | 40 | C-70 | 13.1 |
| JHS-90" | Oil pressure | 18 | ∮90 | ∮87 | 40 | C-70 | 15.5 |
| Size parameters | ||||||||

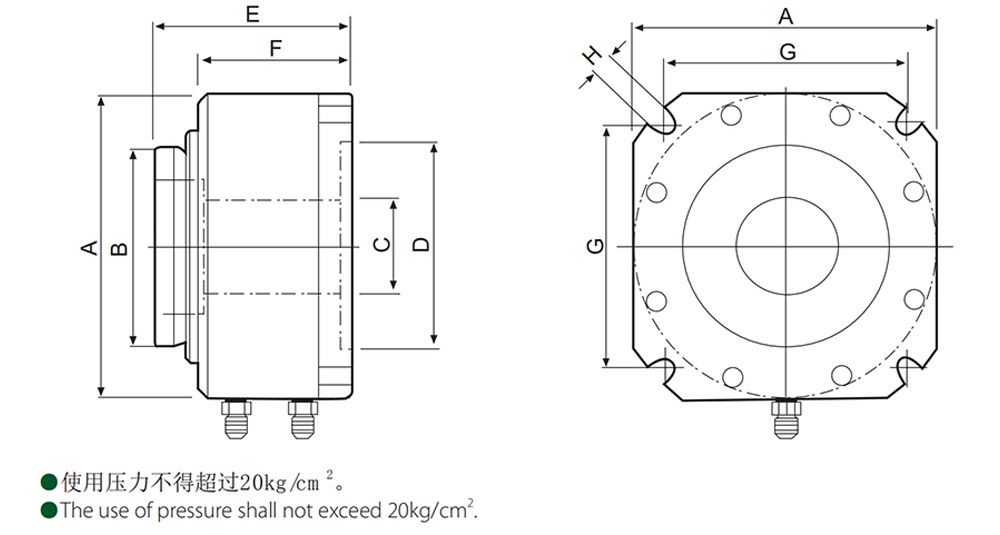

| Model/Spec. | A | B | C | D | E | F | G | H |
| JHS-40" | 144 | 95 | 38 | 100 | 96 | 73 | 115.3 | 11 |
| JHS-70" | 188 | 135 | 68 | 155 | 94 | 73 | 146.4 | 11 |
| JHS-90" | 206 | 135 | 87 | 170 | 95 | 73 | 169.7 | 13 |
Note: The clamping torque is measured by clamping a 20 mm round bar at 20 kg/cm2.
★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.
★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
