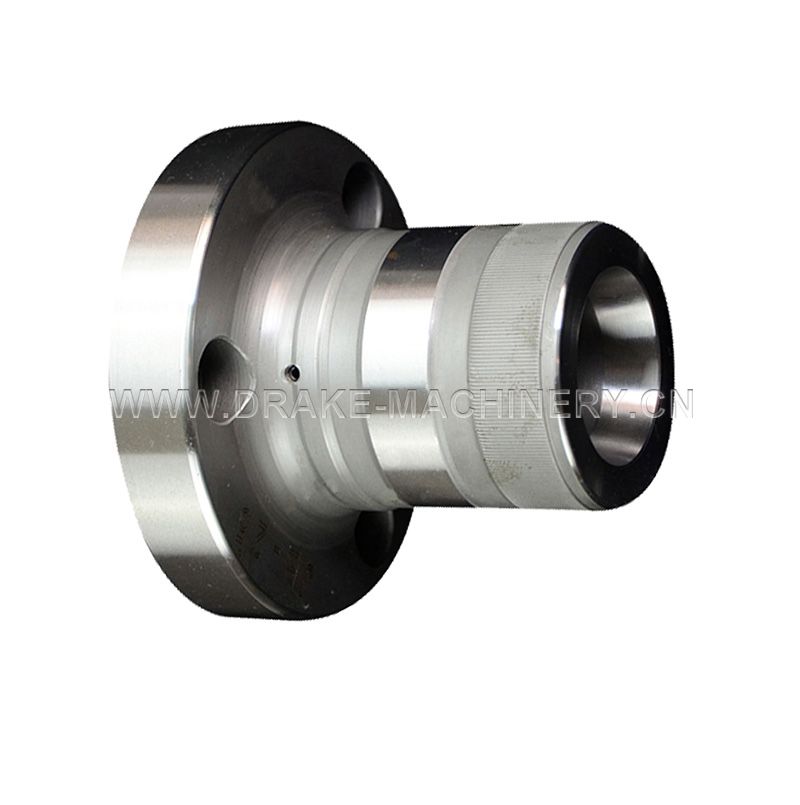

Product Features:
All steel design.
Heat treatment steel integrally formed structure body accuracy within 0.005mm.
Suitable for: NC lathe, car smell, grinder.
产品型号
产品参数

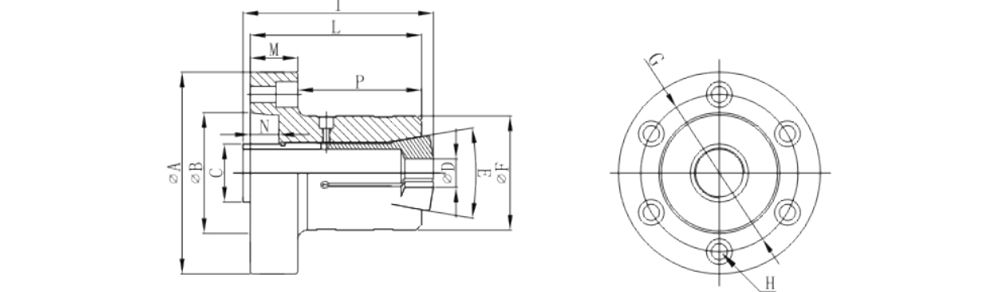

| Type | JB-15 | JB-25 | JB-40 | JB-60 |
| Installation form | 直口 | A2-4 | A2-5 | A2-6 |
| A | 80 | 106 | 132 | 164 |
| B | 55 | 63.513 | 82.563 | 106.375 |
| C | M18*1.2 | 31.3*20 | M47.5*1.75 | M72*2 |
| D(Max) | 13.5 | 25.5 | 40.5 | 62 |
| E | 30° | 20° | 20° | 20° |
| F | 45 | 60 | 72 | 100 |
| G | 66 | 82.6 | 104.8 | 133.4 |
| H | 3-M6 | 3-M8 | 3-M10 | 3-M12 |
| I | 77.9 | 100 | 112 | 125 |
| L | 75 | 90 | 90 | 108 |
| M | 20 | 25 | 25 | 25 |
| N | 5 | 15 | 15 | 20 |
| P | 55 | 65 | 65 | 83 |
| Matching Collet | YB-15 | YB-25 | 16C | 20C |
| Maximum speed (rpm/min) | 6000 | 6000 | 6000 | 5000 |
| ★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements. ★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters! | ||||
