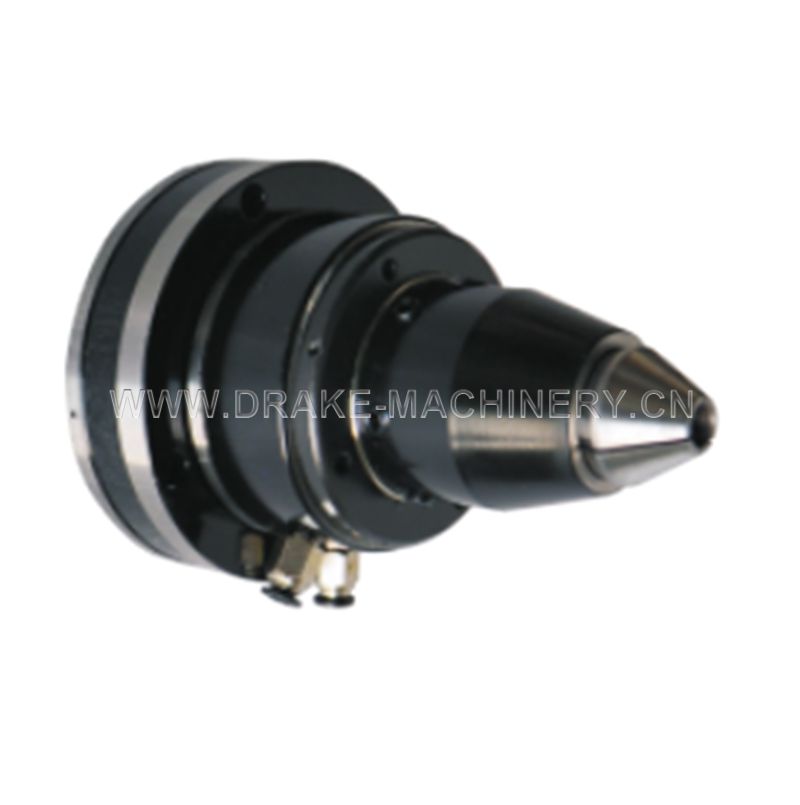

Product Features:
Heat-treated steel integrally formed structure, bearing no load, high speed, long life and low temperature rise.
The two-way power is used to force open the collet and never jam. When the air source is interrupted, the collet is self-locking.
The direct flange is connected to the main shaft, which is convenient and quick to install. It can be connected to the machine smell system through a three-point combination air valve.
Quickly change the collet to facilitate product replacement, the collet does not retract, and the working length can be controlled normally.
The accuracy of the body is within 0.005mm, and the adjustable clamping accuracy is within 0.002.
Product Suitability:
NC lathes, lathes, grinding machines, indexing plates, 4/5 axes.
Precision workpieces, precision tooling, turning and machining.
产品型号
产品参数

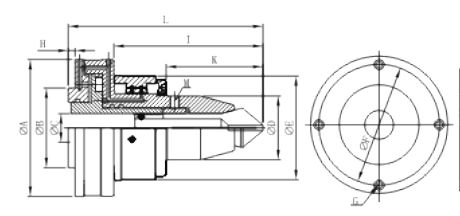

| Size parameters | |||||||||||||
| Model/Spec. | A | B | C | D | E | F | G | H | I | K | L | M | |
| JAB-W25 | 120.3 | 70 | 25 | 56 | 91 | 106 | 4-M5 | 6 | 131 | 85 | 171 | 6-M8 | |
| Model/Spec. | Max. Speed (rpm/min) | Piston stroke （mm) | Clamping Stroke (mm) | Maximum torque （N.m） | Using air pressure (kg/cm²) | Clamping range (mm) | Matching collet | Net weight (kg) | Maximum use pressure (kg) |
| JAB-W25 | 4000 | 4 | 1.5-2 | 15 | 3~8 | 5~25 | YB-25 | 9.5 | 3~8 |
★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.
★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
