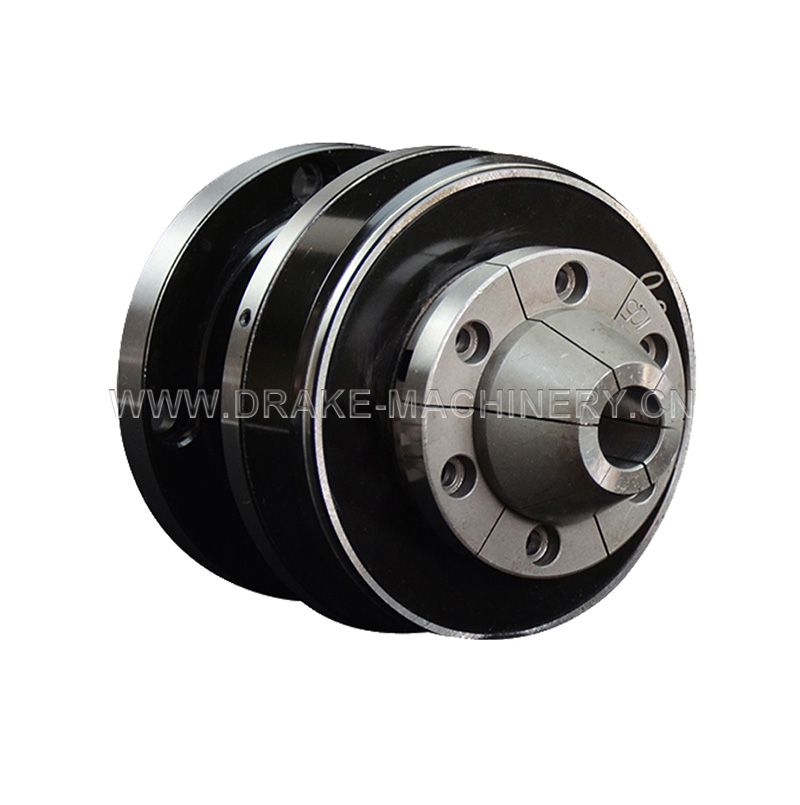

Product Features:
● With diaphragm elastic technology, the repeatability is less than 3μ, and the clamping accuracy can reach 2μ.
● Permanent precision life.
● Highly sealed design, waterproof and dustproof.
● Easily control the concentricity and parallelism of both ends.
● Multi-stage size can be processed in several stages to reduce equipment costs.
● The single-action grinding machine replaces the CNC multi-stage simultaneous processing.
● The air compressor has a built-in direct drive.
● The three-point combination clamping force can be finely adjusted.
Product suitability:
● Precision machining of miniature bearings, motors and precision sets.
● It is suitable for the grinding and grinding of microelectronic products, optical parts, medical parts, light and high precision workpieces.
● Detection of precision components.
产品型号
产品参数

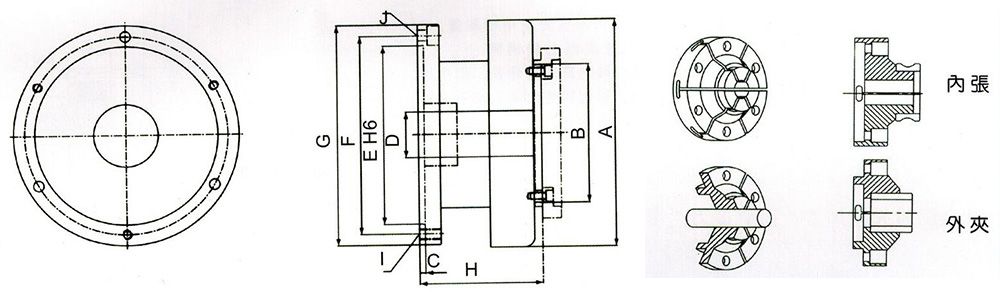

| Size | JA4-60 | JA5-70 | JA6-100 | JA8-150 |
| A | 100 | 147 | 177 | 220 |
| B | 60 | 70 | 100 | 150 |
| C | 4 | 4 | 5 | 5 |
| D | 10 | 15 | 35 | 65 |
| E(H6) | 70 | 100 | 130 | 180 |
| F | 82 | 115 | 147 | 200 |
| G | 97 | 137 | 167 | 220 |
| H | 76 | 93 | 107 | 124 |
| I | 3-M8 | 3-M10 | 3-M10 | |
| J | 4-M6 | 3-M8 | 3-M10 | 3-M10 |
| Maximum speed (r.p.m) | 4000 | 3200 | 2500 | 2000 |
| Use pressure kg/cm² | 2~7 | 2~7 | 2~7 | 2~7 |
| Holding stroke (mm) | 0.1 | 0.3 | 0.3 | 0.3 |
| Net weight (Kg) | 2.8 | 7 | 11.5 | 15 |

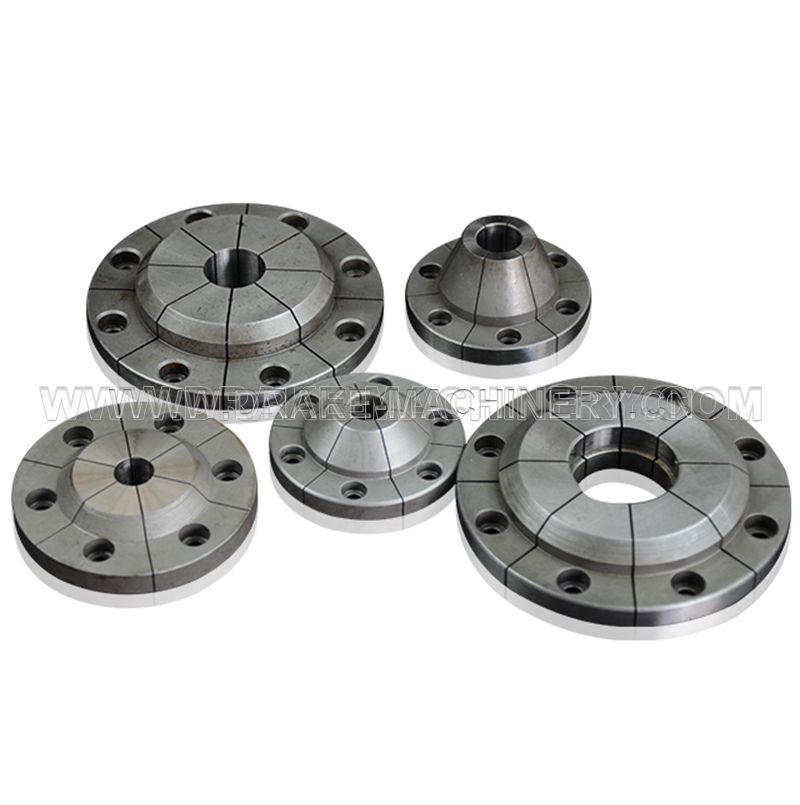

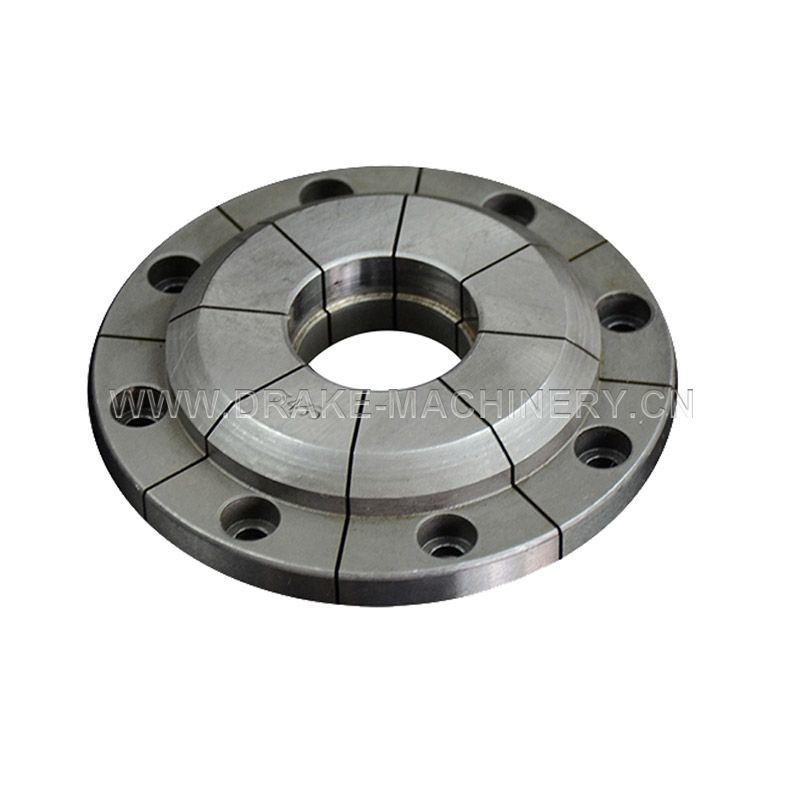

| Matching jaw model | JD-60 | JD-70 | JD-100 | JD-150 |
| ★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements. ★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters! | ||||
