Product Features:

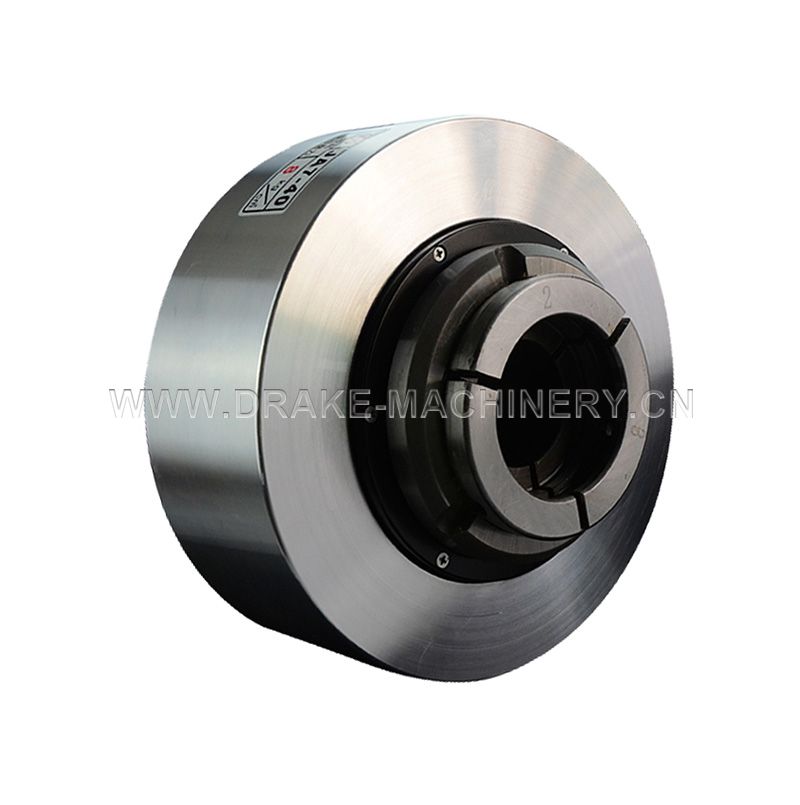

Hydraulic Naito machine, free of hydraulic rotary cylinder.
Clamping accuracy 0.05 ~ 0.08mm (10mm from the end face)
The tight dustproof design confirms the applicable life of the protective bearing.
The oil pressure gauge has a strong grip and is easy to handle heavy cutting.
Simple structure, high efficiency and low cost design.
The aluminum alloy cylinder body, light weight and heat dissipation effectively reduce the temperature.
Product Suitability:
It is suitable for cutting and inner and outer diameter turning of pipe shaft products with general precision.
Precautions:
Insufficient water resistance, do not use pressurized cutting fluid for a long time.
产品型号
产品参数
| Performance parameters | ||||||||
| Model/Spec. | Use pressure (kg/cm²) | Limit speed (rpm/min) | Clamping torque (N.m) | Clamping stroke (mm) | Through-hole aperture (mm) | Max.chuck diameter (mm) | Matching jaw | Net weight (kg) |
| JA5-25 | 2~8 | 1800 | 15 | 1.5 | ∮25 | ∮32 | C-25 | 7.6 |
| JA7-40 | 2~8 | 1800 | 25 | 1.5 | ∮40 | ∮50 | C-40 | 15.3 |
| JA7-70 | 3~8 | 1400 | 30 | 1.5 | ∮68 | ∮90 | C-70 | 25 |

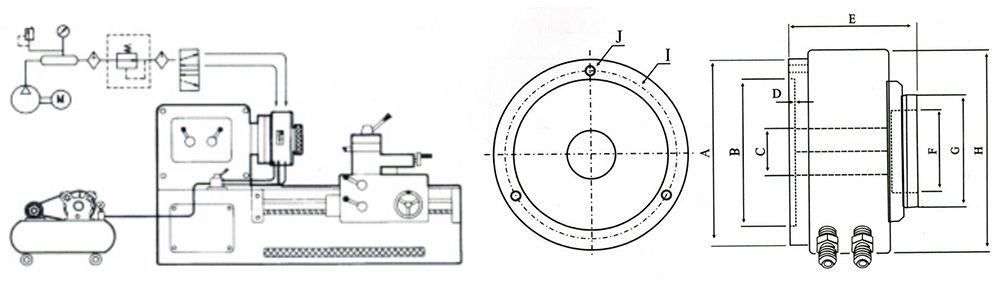

| Size parameters | ||||||||||
| Model/Spec. | A | B | C | D | E | F | G | H | I | J |
| JA5-25 | 135 | 100 | 26 | 4 | 105 | 45 | 68 | 170 | 115 | M8*1.25 |
| JA7-40 | 192 | 155 | 46 | 5 | 125 | 65 | 95 | 212 | 172 | M10*1.5 |
| JA7-70 | 192 | 155 | 69 | 5 | 140 | 105 | 136 | 266 | 172 | M10*1.5 |
| Note: The clamping torque is measured by clamping a 20mm round bar at a pressure of 6kg/cm2 | ||||||||||
